Creating Custom Tools

Custom tools let you extend agents beyond the built-in catalog capabilities. Agent Studio supports two types of custom tools: SMTP tools for sending emails and HTTP tools for calling external REST APIs.

Tip

For a high-level overview of tools and how agents use them, see Tools.

SMTP tools

SMTP tools enable agents to send emails via an SMTP server. Common use cases include:

• Sending notification or alert emails
• Distributing reports with chart attachments
• Automated communications triggered by agent flows

Configuration

SMTP tools require three pieces of configuration:

Component	Description
SMTP config	Server hostname, port, TLS setting, and sender email address
Auth config	Credentials for authenticating with the SMTP server
Tool metadata	Display name, description, and a unique function name

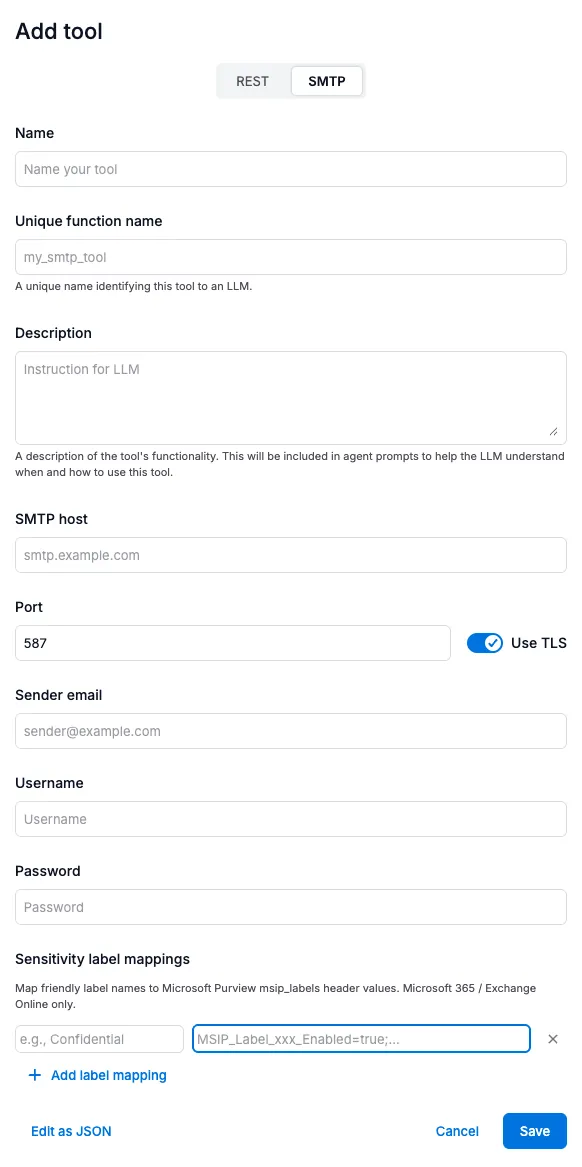

Creating an SMTP tool

1. Open the tool creation form

   In Agent Studio, go to Tools and click Add tool. Select the SMTP tab.

2. Fill in the tool details

   Field	Description	Example
   Name	A display name for the tool	Email Sender
   Unique function name	A unique identifier for the LLM	send_email
   Description	Helps the LLM understand when to use this tool	Send email notifications to recipients
   SMTP Host	Your SMTP server hostname	smtp.yourprovider.com
   Port	SMTP port (typically 587 for STARTTLS)	587
   Use STARTTLS	Enable TLS encryption	true
   Sender email	The “From” address for outgoing emails	notifications@yourcompany.com
   Username	SMTP username	(from your email provider)
   Password	SMTP password or API key	(from your email provider)

3. Save and test

   Click Save, then select the tool and click Run tool to verify the configuration with test inputs.

4. Assign the tool to an agent

   When creating or editing an agent, add the tool from the agent’s tool configuration panel.

Tip

You can also use the Edit as JSON button at the bottom of the tool form to paste a complete JSON configuration directly. This is useful when sharing tool configs between environments.

SMTP configuration fields

Field	Type	Default	Description
host	string	required	SMTP server hostname
port	integer	587	SMTP server port (1—65535)
use_starttls	boolean	true	Whether to use STARTTLS encryption
sender_email	string	required	The “From” address for outgoing emails

Common SMTP providers

Provider	Host	Port	Username
SendGrid	smtp.sendgrid.net	587	apikey (API key as password)
AWS SES	email-smtp.{region}.amazonaws.com	587	IAM SMTP credentials
Gmail	smtp.gmail.com	587	Email address (app password required)
Mailgun	smtp.mailgun.org	587	postmaster@your-domain.mailgun.org

Microsoft 365

Microsoft 365 (smtp.office365.com) has deprecated SMTP Basic Authentication tenant-wide. If your organization uses Microsoft 365, see the Sending email via Microsoft Graph API section below for an alternative approach using HTTP tools.

Tool inputs at runtime

When an agent calls the SMTP tool, it provides the following parameters:

Parameter	Type	Required	Description
to	string or list	Yes	Recipient email address(es)
subject	string	Yes	Email subject line
body	string	Yes	Email body content (plain text or HTML)
body_format	string	No	"plain" (default) or "html"
attachment_asset_ids	list	No	Asset IDs to attach to the email
cc	string or list	No	CC recipient(s)
bcc	string or list	No	BCC recipient(s)

---

HTTP tools

HTTP tools enable agents to call external HTTPS endpoints. Common use cases include:

• Calling REST APIs (CRM lookups, ticketing systems, etc.)
• Sending webhook notifications (Slack, Teams, etc.)
• Integrating with cloud services (Microsoft Graph, Google APIs, etc.)

Configuration

HTTP tools require four pieces of configuration:

Component	Description
HTTP config	URL template, HTTP method, and timeout
Auth config	Credentials for authenticating with the endpoint
Input parameter schema	JSON Schema defining the tool’s input parameters
Tool metadata	Display name, description, and a unique function name

Creating an HTTP tool

1. Open the tool creation form

   In Agent Studio, go to Tools and click Add tool. Select the REST tab.

2. Fill in the tool details

   Field	Description	Example
   Name	A display name for the tool	Customer Lookup
   Unique function name	A unique identifier for the LLM	lookup_customer
   Description	Helps the LLM understand when to use this tool	Look up customer details by ID
   URL	HTTPS URL template (use {param} for path parameters)	https://api.example.com/v1/customers/{customer_id}
   Method	HTTP method	GET
   Timeout (seconds)	Request timeout (max 60)	30
   Authentication method	How to authenticate with the endpoint	See Supported authentication types

3. Add input parameter schema

   Click Add input parameter schema and define the parameters the tool accepts as a JSON Schema. Path parameters in the URL (e.g., {customer_id}) must be included and marked as required.

   {
     "type": "object",
     "properties": {
       "customer_id": {
         "type": "string",
         "description": "Customer ID to look up"
       }
     },
     "required": ["customer_id"]
   }

4. Save and test

   Click Save, then select the tool and click Run tool to verify the configuration.

5. Assign the tool to an agent

   When creating or editing an agent, add the tool from the agent’s tool configuration panel.

Tip

You can also use the Edit as JSON button at the bottom of the tool form to paste a complete JSON configuration directly.

HTTP configuration fields

Field	Type	Default	Description
url	string	required	HTTPS URL template (can include {param} placeholders)
method	string	required	GET, POST, PUT, PATCH, or DELETE
timeout_seconds	integer	30	Request timeout in seconds (max 60)

URL templates

URLs can include path parameters using {param} syntax:

https://api.example.com/users/{user_id}
https://api.example.com/v1/{resource_type}/{resource_id}

Requirements:

• Must use HTTPS (HTTP is not allowed)
• Cannot use IP addresses (domain names only)
• Cannot point to localhost or private network ranges
• Path parameters must be defined in input_parameter_schema and marked as required

Parameter routing

Parameters are automatically routed based on the HTTP method:

Method	Path parameters	Remaining parameters
GET, DELETE	Substituted into URL	Sent as query string
POST, PUT, PATCH	Substituted into URL	Sent as JSON body

Supported authentication types

Auth Type	Use Case	Required Fields
NONE	Public APIs or API key via headers	custom_headers (optional)
BASIC	Username/password	username, password
CLIENT_CREDENTIALS	OAuth 2.0 server-to-server	token_url, client_id, client_secret, scopes (optional)
AUTHORIZATION_CODE	OAuth 2.0 user-delegated	authorization_url, token_url, client_id, client_secret (optional)

Authentication examples

API key via custom headers

{
  "name": "API Key Auth",
  "auth_type": "NONE",
  "custom_headers": {
    "X-API-Key": "your-api-key"
  }
}

Basic authentication

{
  "name": "Basic Auth",
  "auth_type": "BASIC",
  "username": "user",
  "password": "password"
}

OAuth 2.0 Client Credentials

{
  "name": "OAuth M2M",
  "auth_type": "CLIENT_CREDENTIALS",
  "token_url": "https://auth.example.com/oauth/token",
  "client_id": "your-client-id",
  "client_secret": "your-client-secret",
  "scopes": "api.read api.write"
}

Note

When using CLIENT_CREDENTIALS auth, Agent Studio automatically fetches and refreshes OAuth tokens. You do not need to manage token lifecycle manually.

---

Example: Sending email via Microsoft Graph API

Organizations using Microsoft 365 often have SMTP Basic Authentication disabled tenant-wide. In this case, you can use an HTTP tool with the Microsoft Graph Send Mail API to send emails using OAuth 2.0 — no code changes required.

Prerequisites

You need an Azure AD app registration with the Mail.Send application permission. See the Microsoft documentation for setup instructions.

1. Register an app in Microsoft Entra ID (Azure AD)

   • Go to the Azure portal > Microsoft Entra ID > App registrations > New registration
   • Give it a name (e.g., “Alation Agent Studio Email”)
   • Set Supported account types to “Accounts in this organizational directory only”
   • No redirect URI is needed

2. Add the Mail.Send permission

   • In the app registration, go to API permissions > Add a permission
   • Select Microsoft Graph > Application permissions
   • Search for and add Mail.Send
   • Click Grant admin consent (requires an Azure AD admin)

3. Create a client secret

   • Go to Certificates & secrets > New client secret
   • Copy the secret value (it is only shown once)

4. Note your tenant and client IDs

   • From the app’s Overview page, copy the Application (client) ID and Directory (tenant) ID

Create the HTTP tool

1. In Agent Studio, go to Tools > Add tool > REST tab.

2. Click Edit as JSON at the bottom of the form and paste the following configuration, replacing the placeholder values with your Azure AD app details:

   {
     "name": "Send Email (Microsoft 365)",
     "function_name": "send_email_m365",
     "description": "Send an email using Microsoft Graph API. Use this tool to send emails to recipients with a subject and body.",
     "tool_type": "http",
     "auth_config": {
       "name": "Microsoft Graph OAuth",
       "auth_type": "CLIENT_CREDENTIALS",
       "token_url": "https://login.microsoftonline.com/<your-tenant-id>/oauth2/v2.0/token",
       "client_id": "<your-client-id>",
       "client_secret": "<your-client-secret>",
       "scopes": "https://graph.microsoft.com/.default"
     },
     "http_config": {
       "url": "https://graph.microsoft.com/v1.0/users/{sender_user_id}/sendMail",
       "method": "POST",
       "timeout_seconds": 30
     },
     "input_parameter_schema": {
       "type": "object",
       "properties": {
         "sender_user_id": {
           "type": "string",
           "description": "The email address of the sender, e.g. noreply@yourcompany.com"
         },
         "message": {
           "type": "object",
           "description": "The email message to send",
           "properties": {
             "subject": {
               "type": "string",
               "description": "Email subject line"
             },
             "body": {
               "type": "object",
               "description": "Email body",
               "properties": {
                 "contentType": {
                   "type": "string",
                   "description": "Body format: Text or HTML"
                 },
                 "content": {
                   "type": "string",
                   "description": "The email body content"
                 }
               },
               "required": ["contentType", "content"]
             },
             "toRecipients": {
               "type": "array",
               "description": "List of recipients",
               "items": {
                 "type": "object",
                 "properties": {
                   "emailAddress": {
                     "type": "object",
                     "properties": {
                       "address": {
                         "type": "string",
                         "description": "Recipient email address"
                       }
                     },
                     "required": ["address"]
                   }
                 },
                 "required": ["emailAddress"]
               }
             }
           },
           "required": ["subject", "body", "toRecipients"]
         }
       },
       "required": ["sender_user_id", "message"]
     }
   }

3. Click Save, then test the tool with sample inputs.

Tip

The sender_user_id path parameter can be set as a fixed input on the agent (e.g., noreply@yourcompany.com) so the agent does not need to decide which sender to use at runtime. Alternatively, you can hardcode the sender directly in the URL (e.g., https://graph.microsoft.com/v1.0/users/noreply@yourcompany.com/sendMail) and remove sender_user_id from the schema. See Tool input configuration for details.

How it works

When an agent calls this tool:

1. Agent Studio uses the CLIENT_CREDENTIALS auth config to automatically fetch an OAuth token from https://login.microsoftonline.com/{tenant}/oauth2/v2.0/token
2. The token is included as a Bearer token in the request to Microsoft Graph
3. The Graph API sends the email on behalf of the specified sender
4. A 202 Accepted response confirms the email was accepted for delivery

Microsoft reference documentation

• Send mail API reference — Full API specification, request body schema, and examples
• OAuth 2.0 Client Credentials flow — How to obtain tokens for server-to-server calls
• Register an application — Step-by-step Azure AD app registration
• Microsoft Graph permissions reference — Available application permissions

---

Troubleshooting

SMTP tools

Error	Cause	Solution
Authentication unsuccessful	Wrong credentials or Basic Auth disabled	Verify username/password. For Microsoft 365, use an HTTP tool with Graph API instead
Connection refused	Wrong host or port	Verify SMTP server settings with your email provider
TLS handshake error	STARTTLS misconfiguration	Verify port supports STARTTLS (typically port 587)
Sender not verified	Unverified sender address	Verify the sender email with your provider

HTTP tools

Error	Cause	Solution
URL must use HTTPS	HTTP URL provided	Change the URL scheme to https://
URL cannot use IP addresses	IP address in URL	Use a domain name instead
Path parameters not found in schema	Missing schema property	Add the path parameter to input_parameter_schema and mark it as required
401/403 response	Authentication failure	Verify credentials. For OAuth, check that admin consent has been granted
Request timed out	Slow endpoint	Increase timeout_seconds (max 60)

API reference

Endpoint	Method	Description
/ai/api/v1/config/tool	POST	Create a tool config
/ai/api/v1/config/tool	GET	List tool configs
/ai/api/v1/config/tool/{id}	GET	Get a tool config
/ai/api/v1/config/tool/{id}	PATCH	Update a tool config
/ai/api/v1/config/tool/{id}	DELETE	Delete a tool config

For the full API specification, see the API Reference.
