Flows

Related Guides

This page introduces Agent Flows. For detailed guides on specific topics, see:

• Scheduling Flows — Set up automated schedules
• Variables and Context — Understand how data flows between steps

Overview

Agent Flows let you chain agents and tools into automated workflows that run on demand or on a schedule.

Instead of manually running an agent, copying its output, and pasting it into another tool, you can create a flow that does this automatically. For example:

• Generate a weekly chart and email it to your team
• Run a data quality check and create a JIRA ticket if issues are found
• Summarize new data and post to Slack

Key Benefit Transform repetitive multi-step tasks into automated processes that run exactly when needed.

How Flows Work

A flow is a sequence of steps that run one after another. Each step is either an agent (which can reason and make decisions) or a tool (which performs a specific action).

Data flows forward

When a step runs, it produces outputs. Later steps can use those outputs as inputs:

Key rule

A step can only use outputs from steps that came before it. You cannot reference something that hasn’t run yet.

Execution model

Behavior	What it means
Sequential	Steps run one at a time, in order
Fail-fast	If any step fails, the flow stops immediately
No loops	Each step runs exactly once

What you control

You define…	Example
Runtime parameters	Values you provide each time the flow runs
Step inputs	Map each input to a static value or a previous step’s output
Schedule (optional)	When the flow should run automatically

Accessing Flows

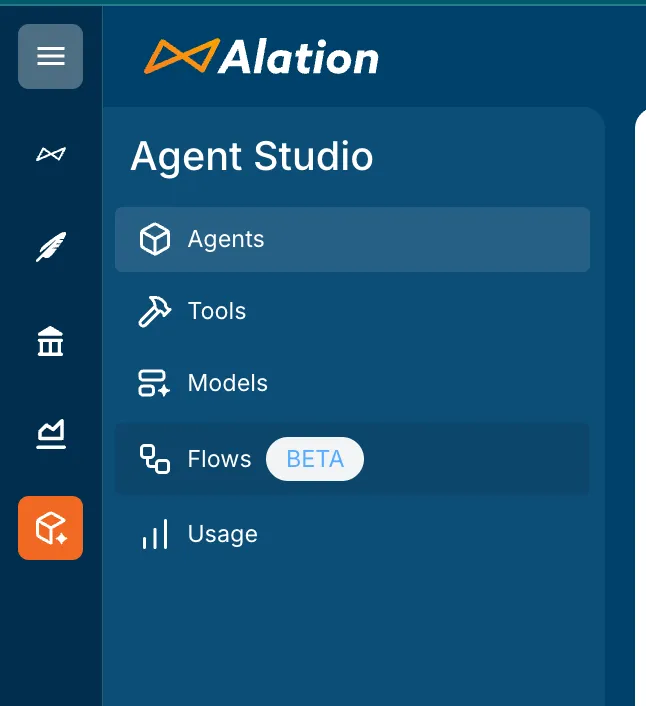

Navigate to Flows in the Agent Studio sidebar.

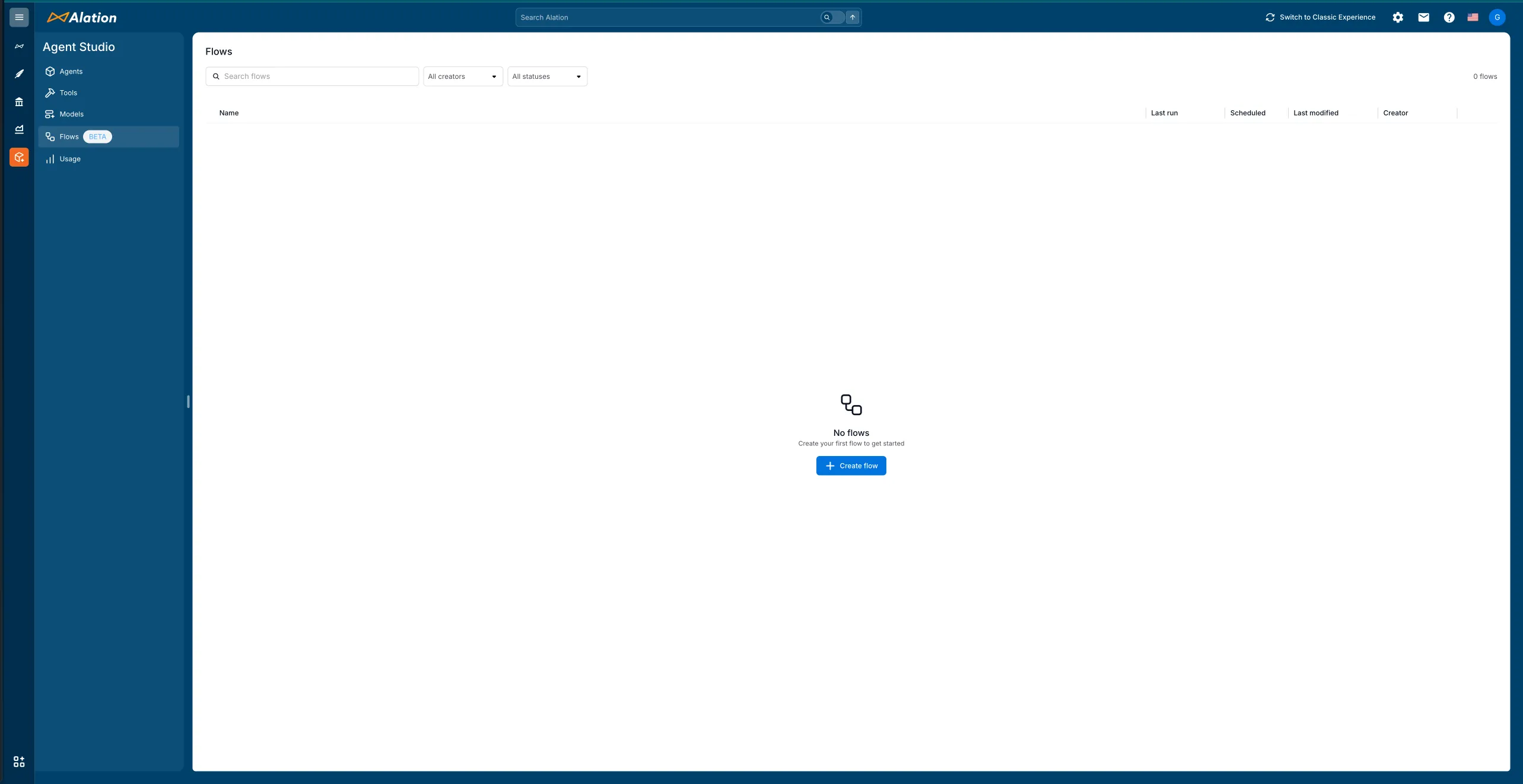

The Flows page shows all your existing flows with their run history, schedules, and status.

Creating a flow

1. Click + Create flow to open the flow editor
2. Define runtime inputs (parameters the flow needs when it runs)
3. Add agent and tool steps
4. Connect outputs from one step to inputs of the next
5. Save and test your flow

The flow editor

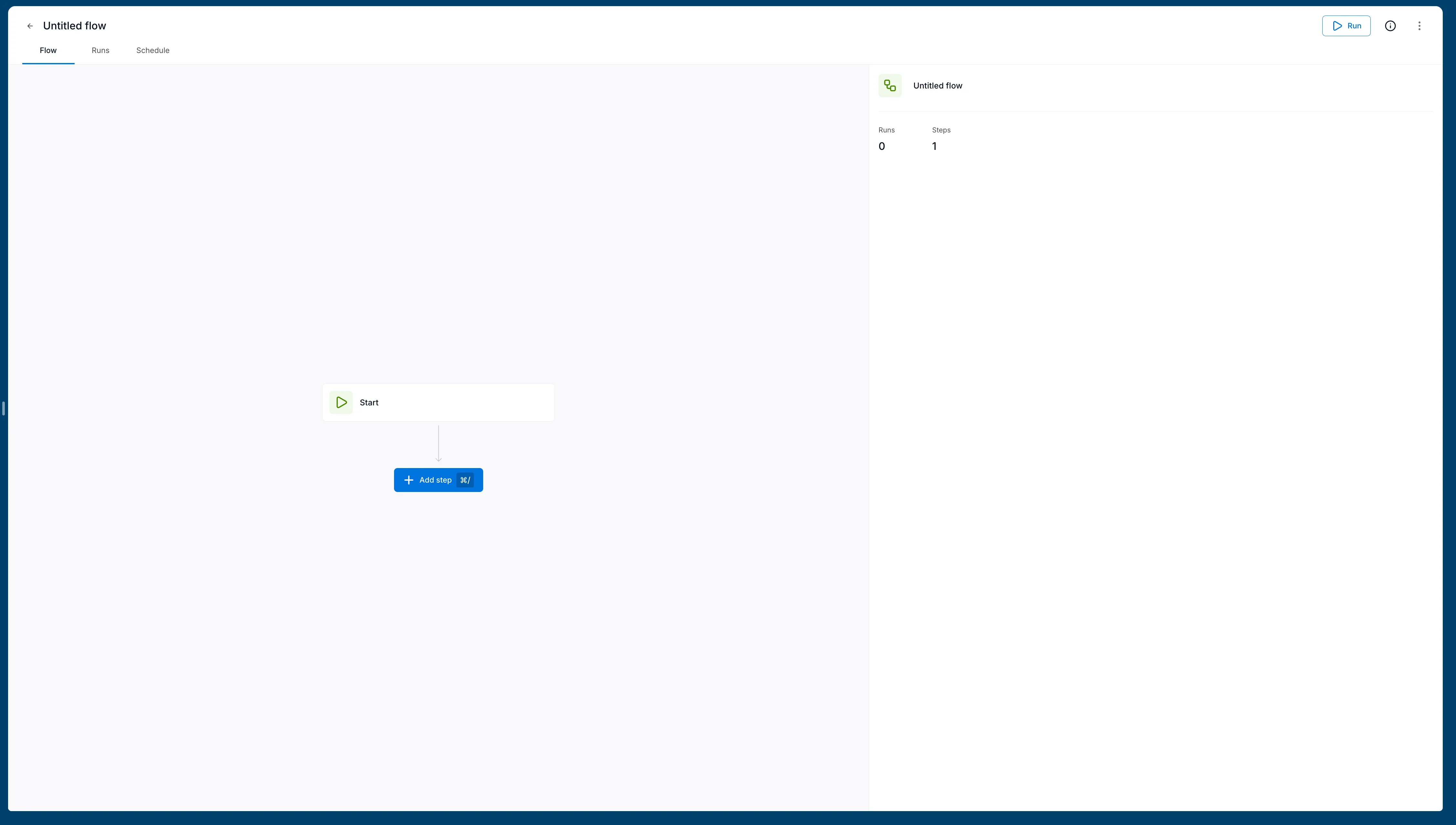

When you create a new flow, you start with a visual canvas showing a Start node.

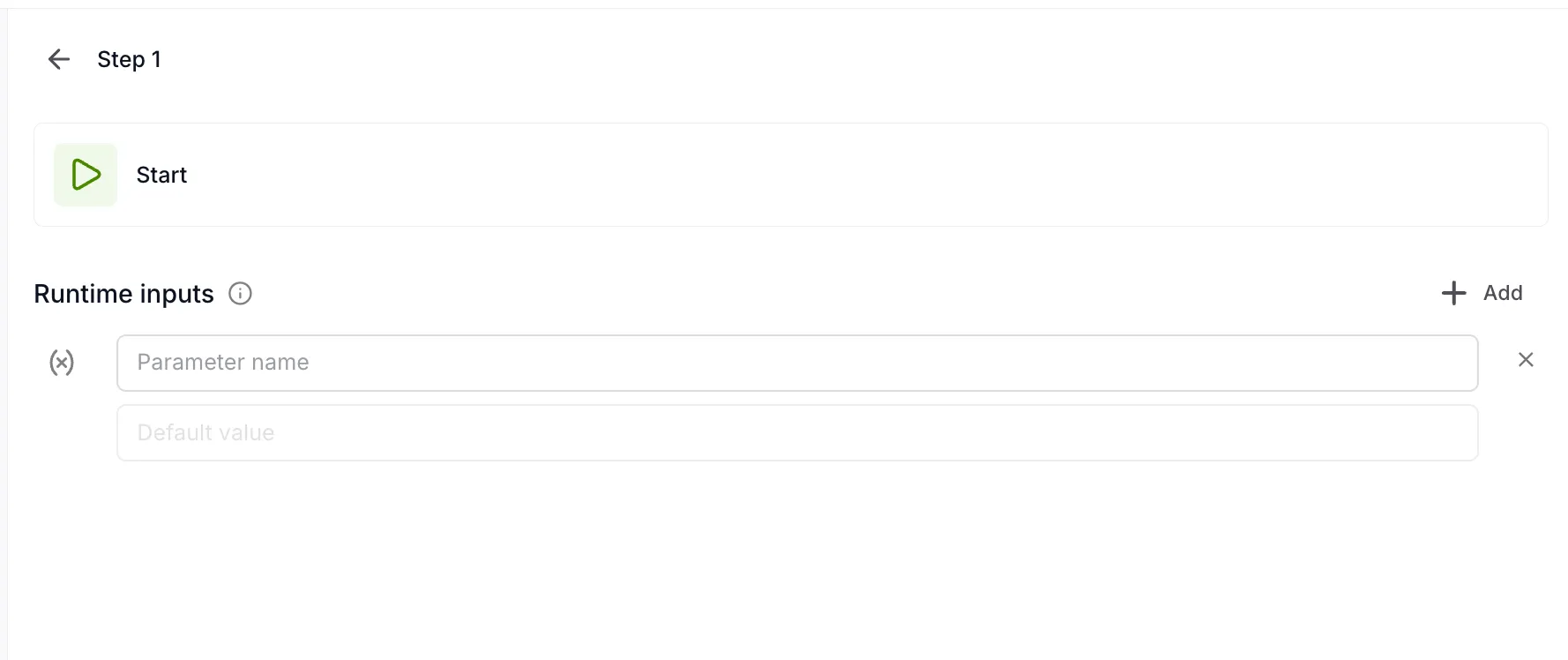

The Start node is where you define runtime inputs—parameters that can be provided each time the flow runs.

Defining runtime inputs

Runtime inputs let you reuse the same flow with different values. For example, a reporting flow might accept a date range or a specific query.

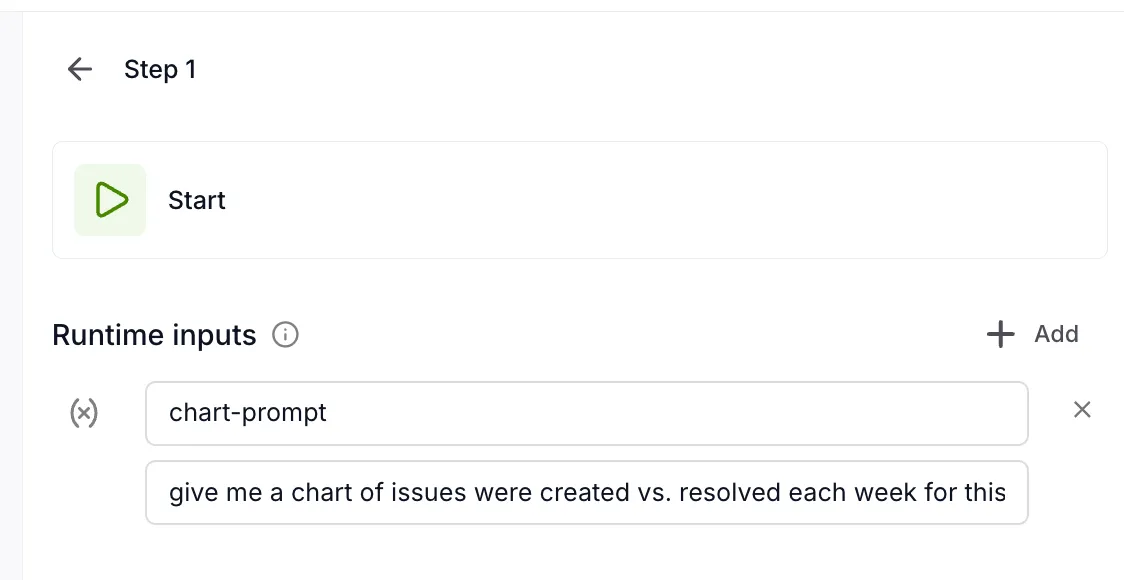

Add parameters with a name and optional default value:

Adding steps

Click + Add step to add an agent or tool to your flow.

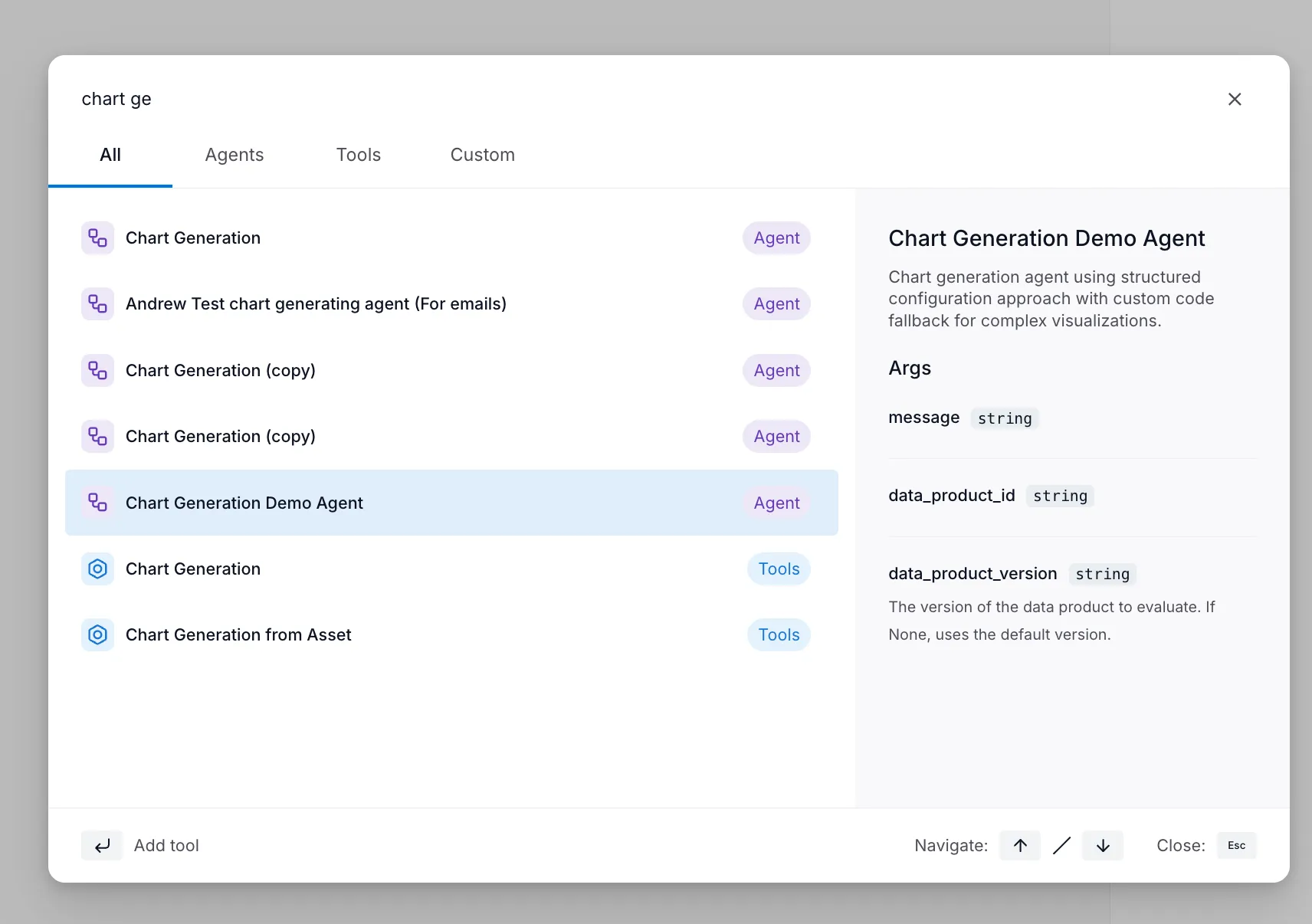

The selector shows all available agents and tools with their descriptions and required inputs. Search or browse to find what you need.

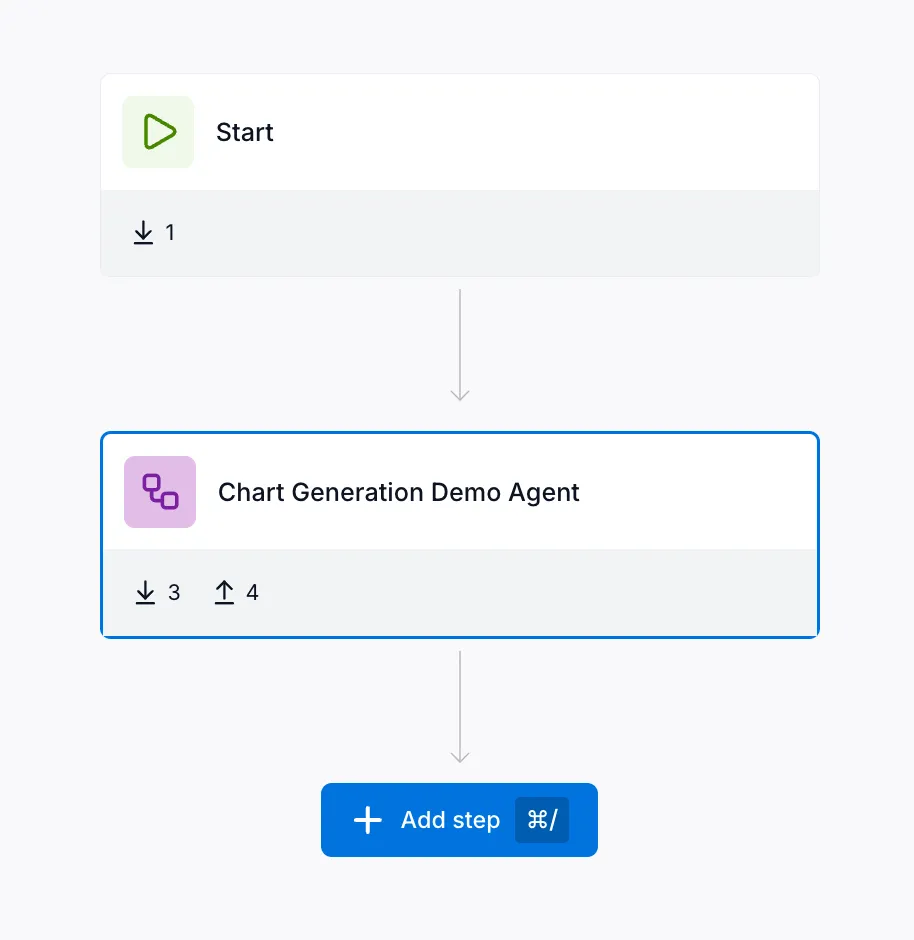

After adding a step, the canvas updates to show the connection:

Connecting steps with variables

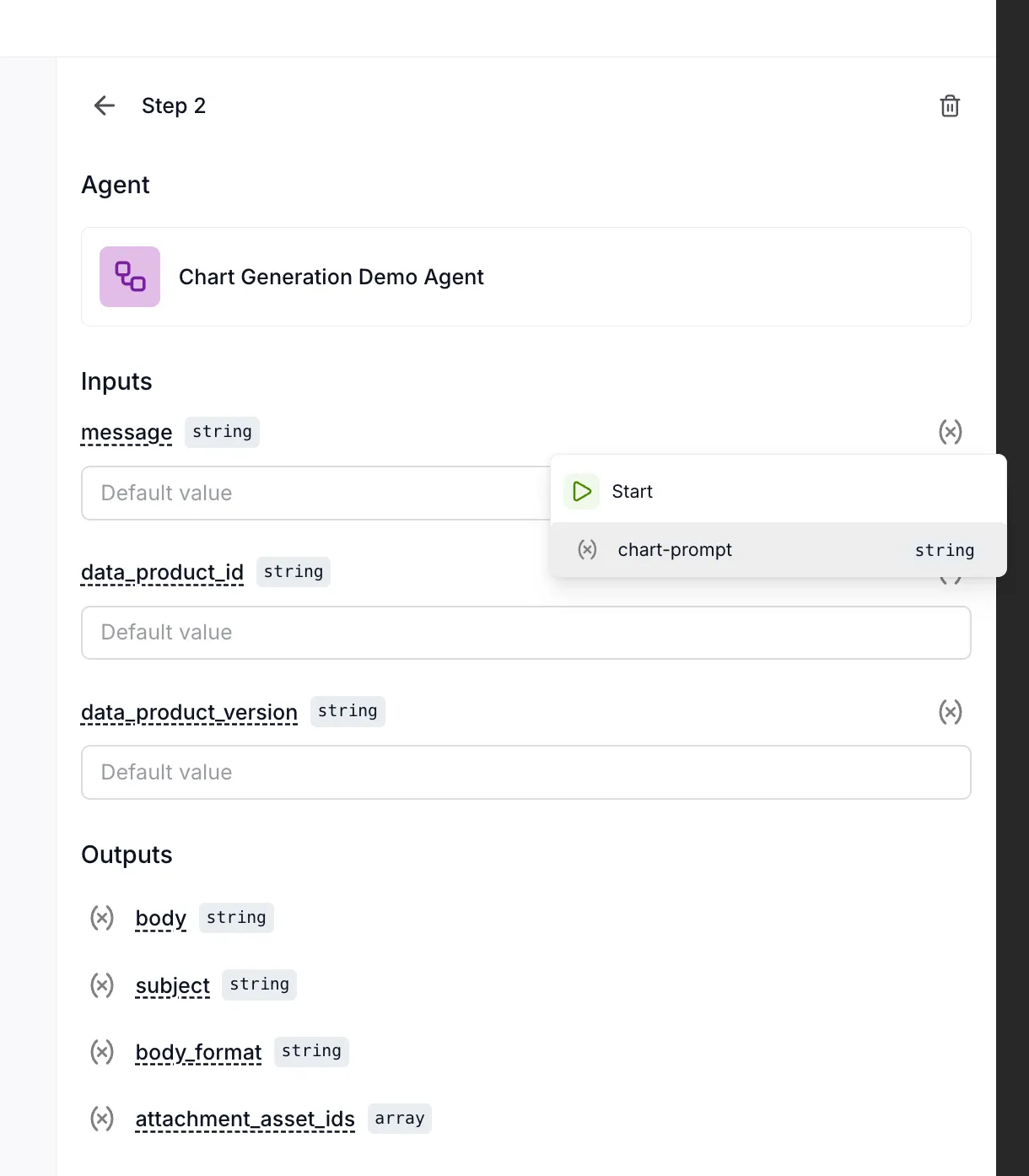

The power of flows comes from connecting outputs to inputs. When configuring a step’s inputs, you can:

• Enter a static value (fixed text or number)
• Select a variable from a previous step’s output

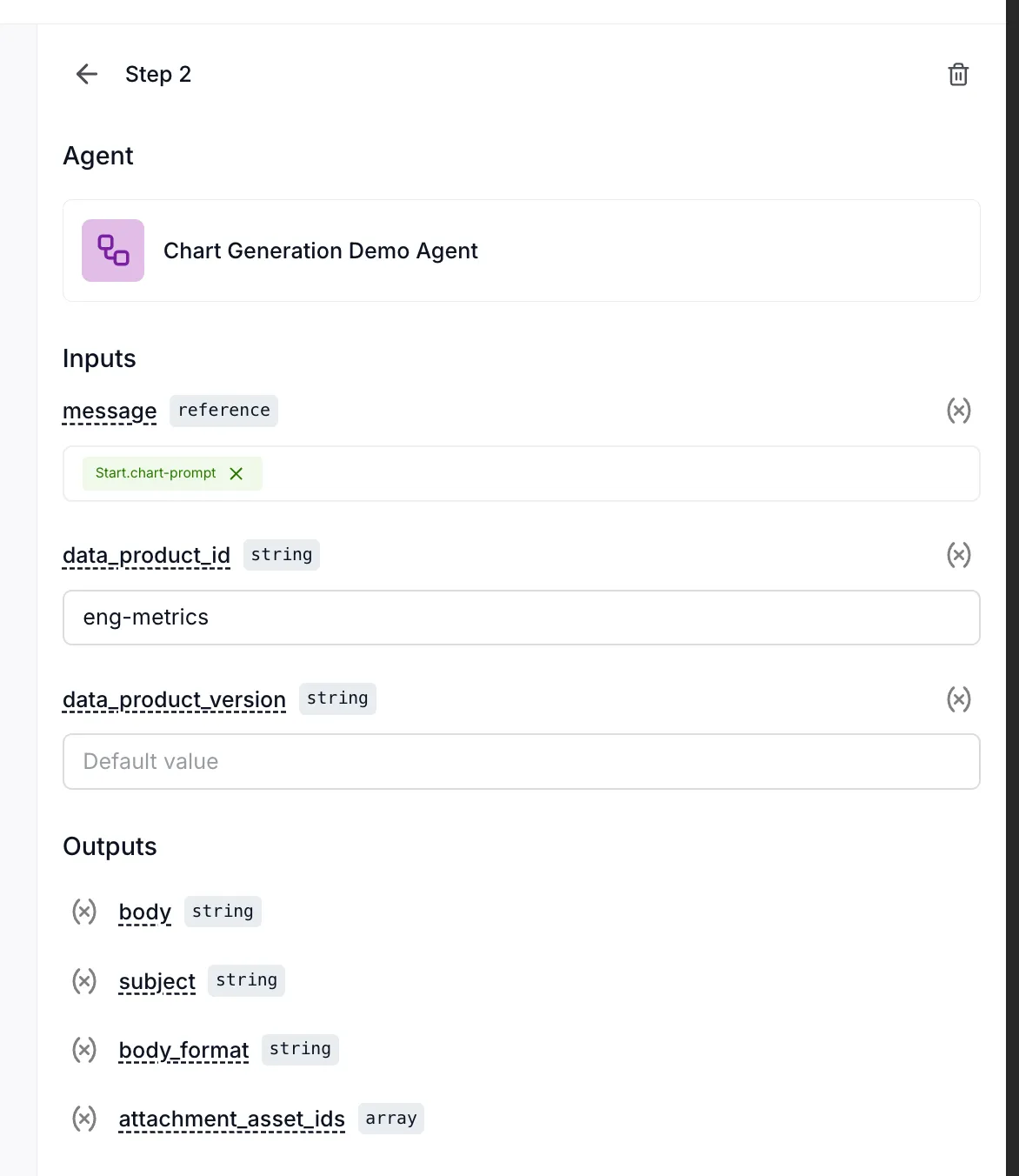

In this example, the agent’s message input receives the chart-prompt parameter from the Start step.

For a deeper dive into how variables work, see the Variables and Context guide.

Chaining multiple steps

You can add as many steps as needed. Each step can reference outputs from any previous step.

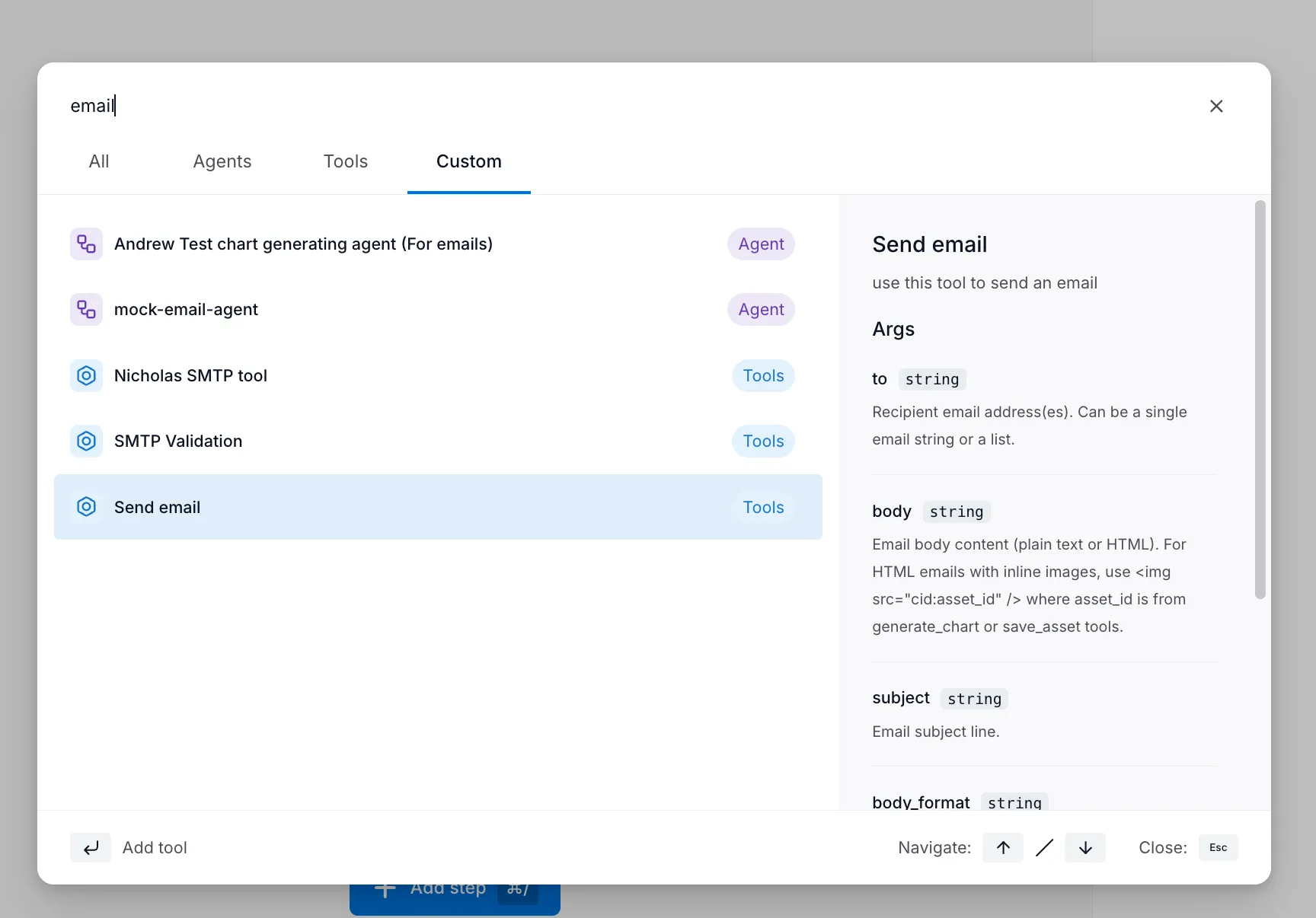

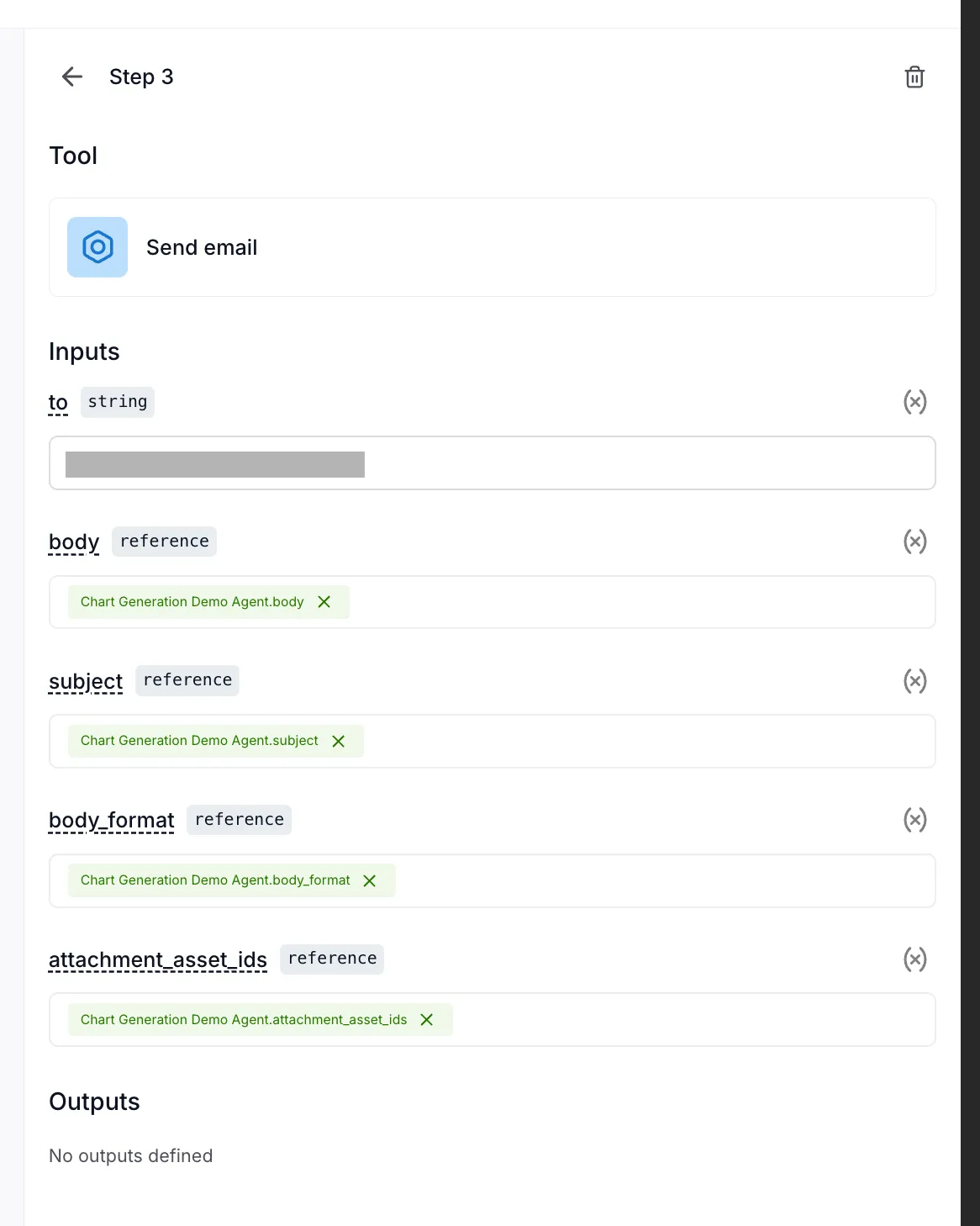

When configuring the email tool, you can map its inputs to the agent’s outputs:

Saving your flow

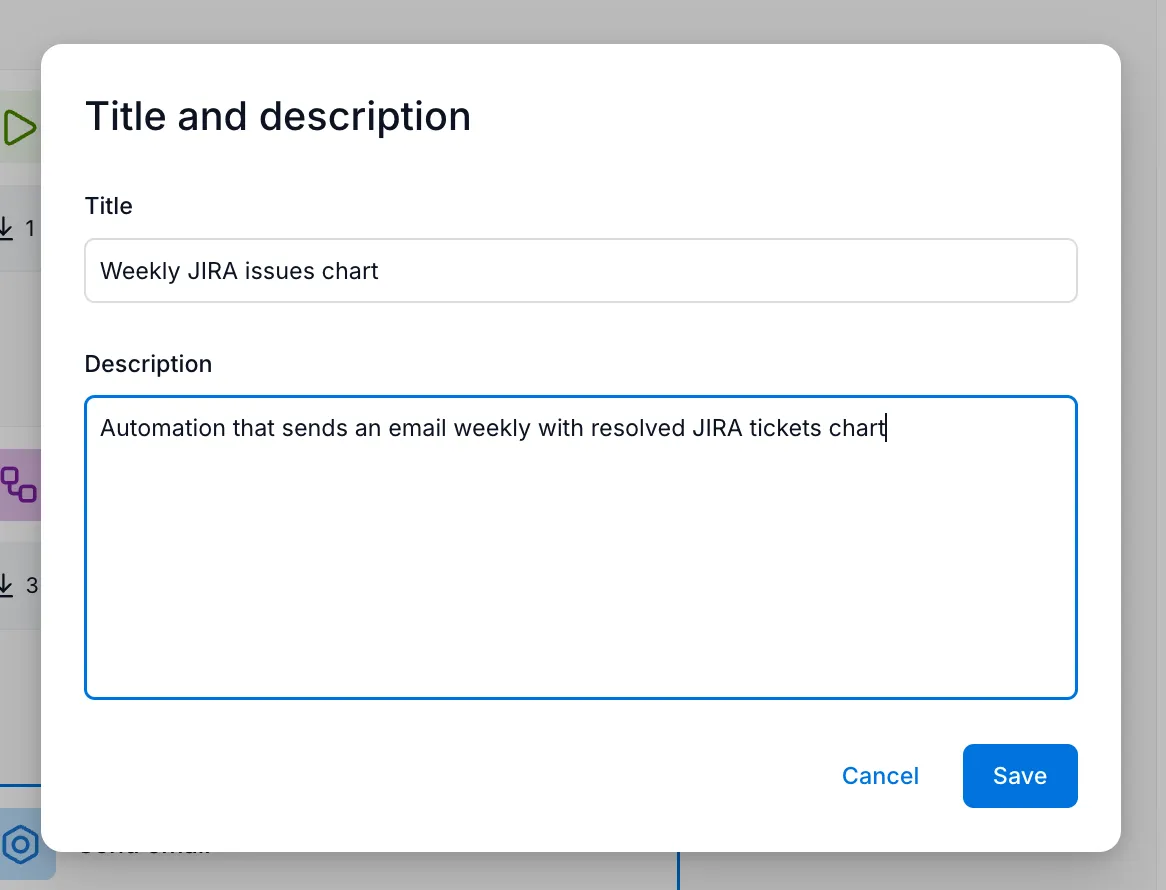

Click Save and provide a title and description:

Running a flow

Manual runs

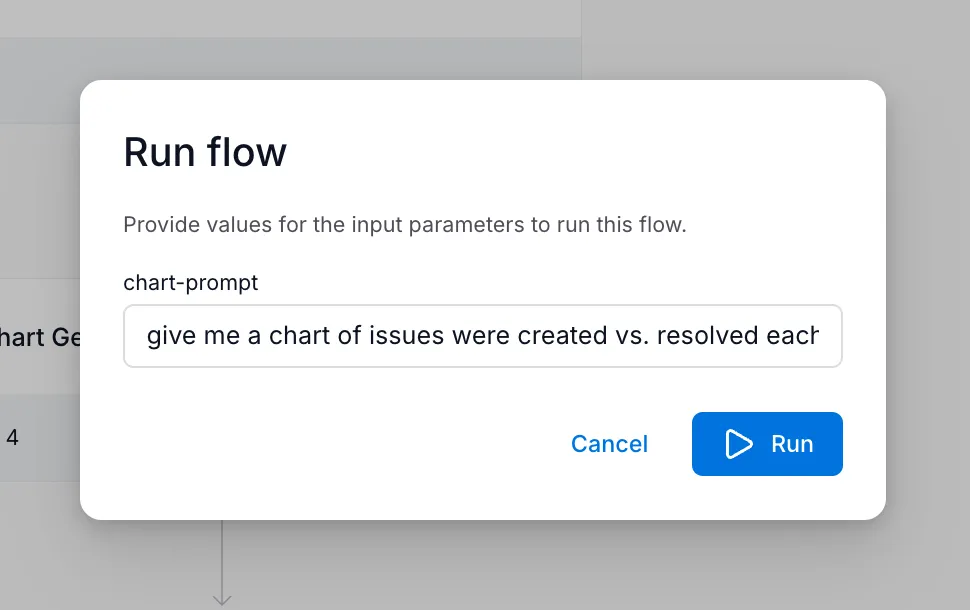

To test your flow or run it on demand:

1. Open the flow
2. Click Run
3. Provide values for any runtime inputs
4. Click Run to start execution

Monitoring execution

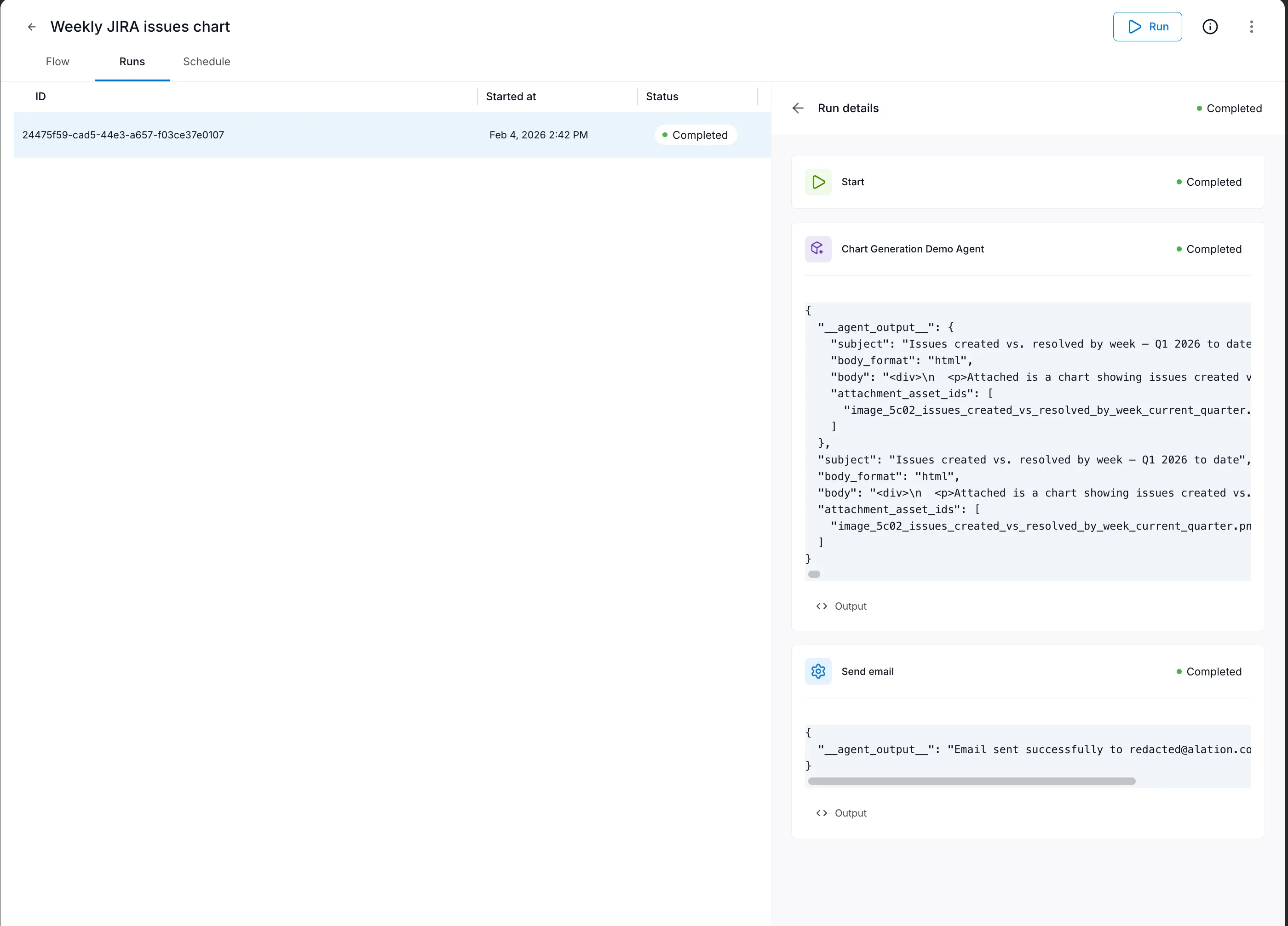

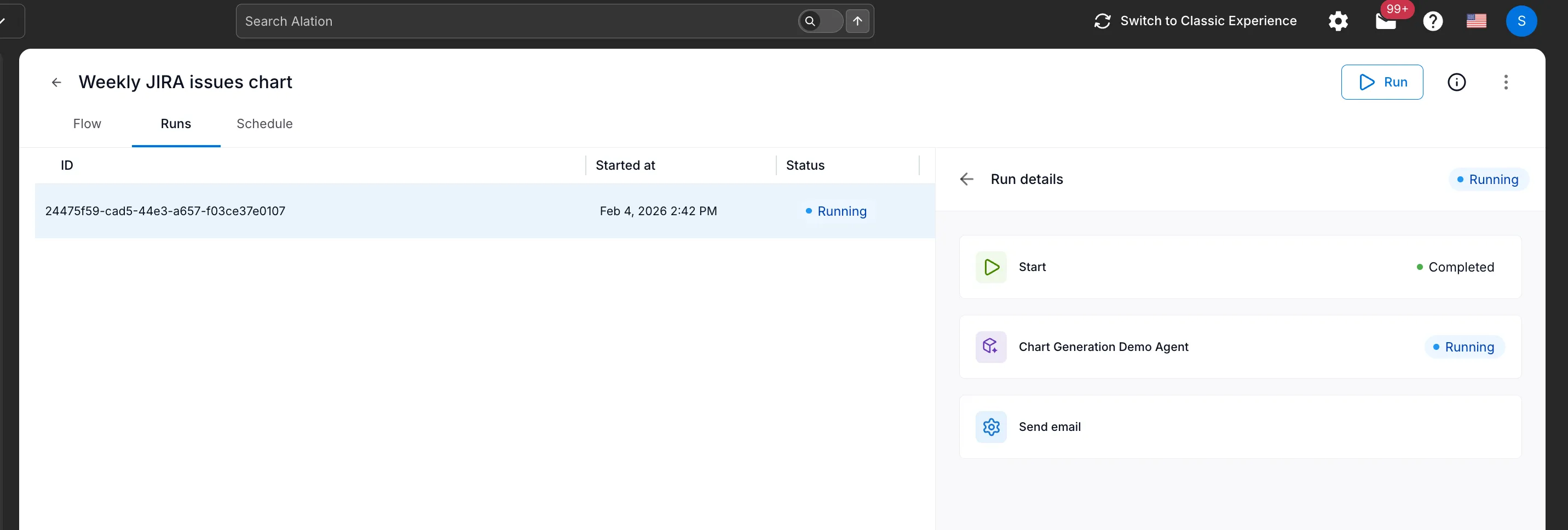

The Runs tab shows execution progress in real-time:

Each step shows its status (Completed, Running, or Pending). Expand completed steps to see their outputs.

Viewing results

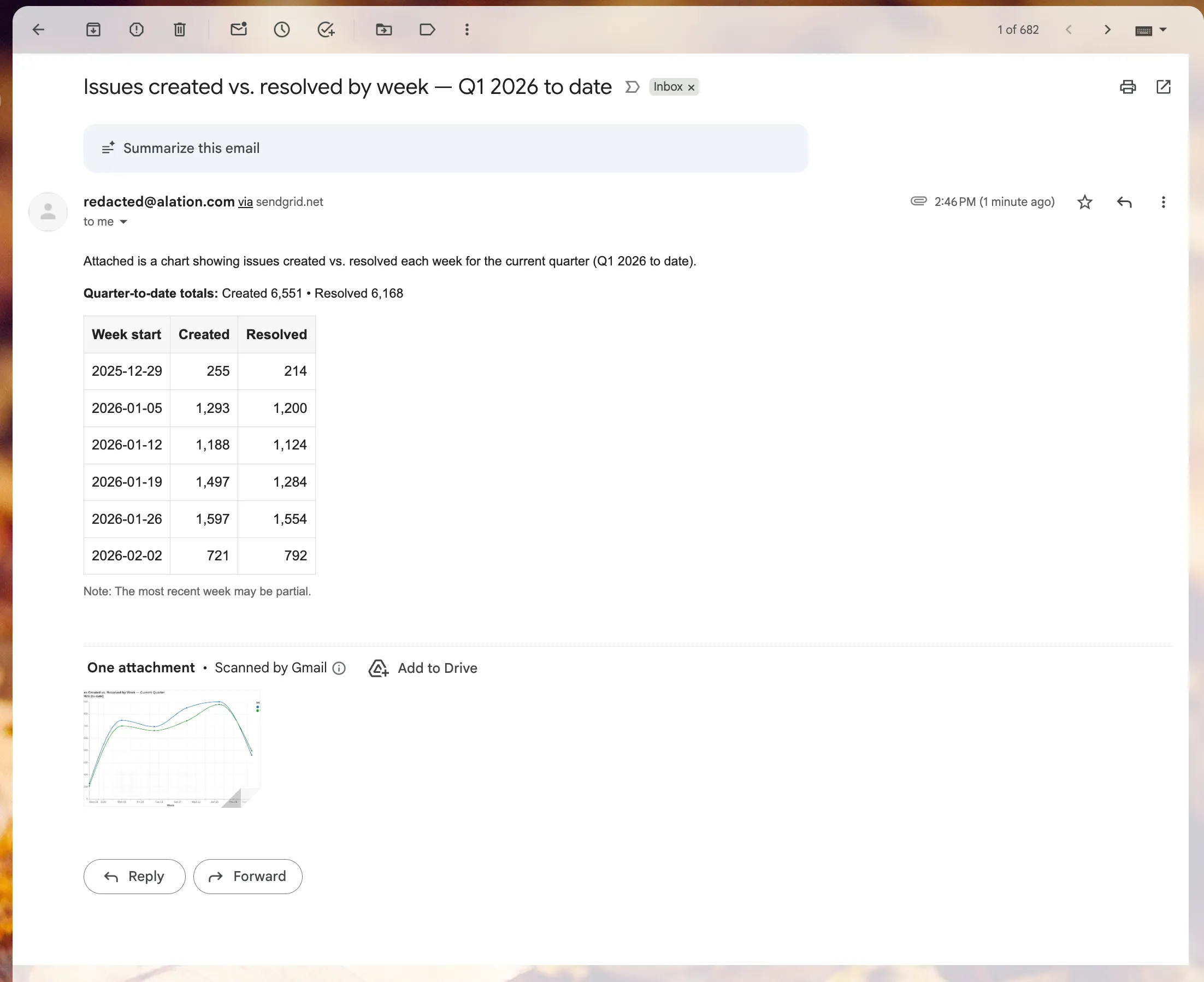

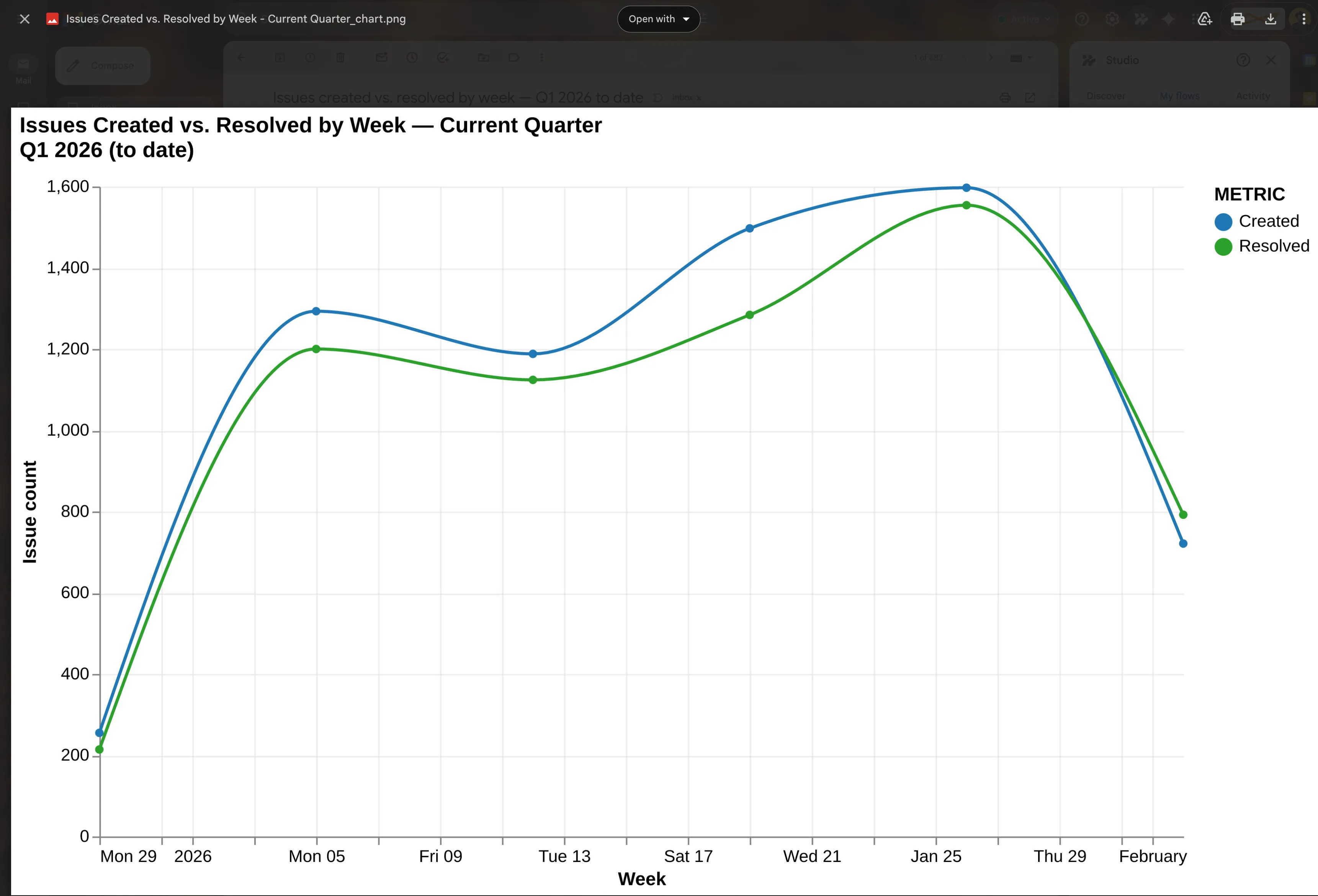

The outputs from your flow depend on what steps you’ve configured. In this example, the email was sent successfully:

Scheduling flows

Flows can run automatically on a schedule—daily, weekly, or at custom intervals.

Note

Scheduling requires one-time authorization. See the Scheduling Flows guide for setup instructions.

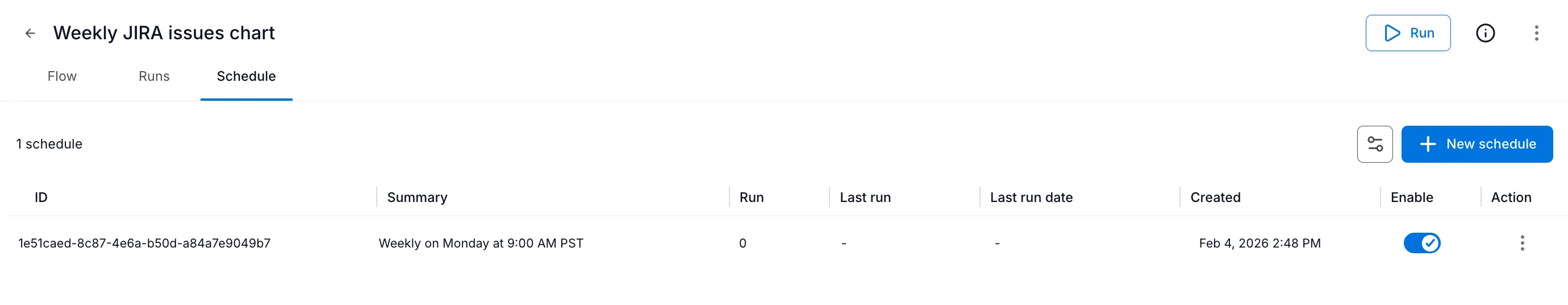

Once authorized, you can create schedules from the Schedule tab:

Summary

Agent Flows let you:

• Chain agents and tools into multi-step workflows
• Pass data between steps using variable references
• Run manually for testing or on-demand execution
• Schedule automatically for recurring tasks

Next steps

Scheduling Flows Set up automated schedules for your flows

Variables and Context Learn how data flows between steps
